Cylinder Printer

Description

High Productivity UV-LED Inkjet Printer for Taper / Cylinder Printing

You can print 360 degrees directly on an object in full CMYK+W+V mode.

It is a UV LED curing inkjet printer designed specifically for direct printing on cylindrical flat wall objects and conical/conical objects.

CYLINDRICAL INKJET PRINTERS
Inkjet Printers in general offer unprecedented possibilities for direct-to-shape printing. Our cylindrical inkjet printers are designed for printing on either flat- or taper-walled cylindrical objects such as water bottles, pint glasses and other drinkware.
With rotary inkjet printer using accolor, you now have the ability to print in a full 360 degrees directly on an object in full CMYK+W+V, thus eliminating the step of applying a label to the object.
With inkjet, short-run bottle printing is also now possible. Water bottle printers, wine bottle printers, squeeze bottle printing, it’s all possible on our cylindrical inkjet printers.
Suitable for digitally printing on all types of containers, including beverage cans (necked), aluminum tubes, water bottles, glass cups, laminated plastic tubes, rigid plastic caulk & adhesive tubes, aluminum aerosol cans (necked), screw top wine bottle caps/ sleeves, tapered plastic or aluminum drinkware cups, lip balm tubes, plastic shampoo bottles, and other types of round or tapered containers, Full 360º Seamless Wrap Printing.
A Cylindrical Inkjet Printer For Every Application

ADVANTAGES OF DIGITAL
PRINTING TECHNOLOGY

•  Small lot size orders are no longer cost prohibitive
•  Artwork changes are done on the fly with zero downtime
•   No films, printing plates, screens or pre-press room required
•   Superior Print Quality with Photo-Realistic eye-popping graphics
•   Can provide up to 1800 dpi resolution during printing
•   Environmental Impact and Waste is Minimized
•   High Opaque white inks are available and stable in production
•   Printing can be done with CMYK+W+V and  Green, Violet, Orange are available options
•   Spot colors are also available for precise color matching of a logo
•   Create a screen-printed look or tactile printing effect with a thick ink deposit
•   Create metallic effects on beverage & aerosol cans using the substrate color

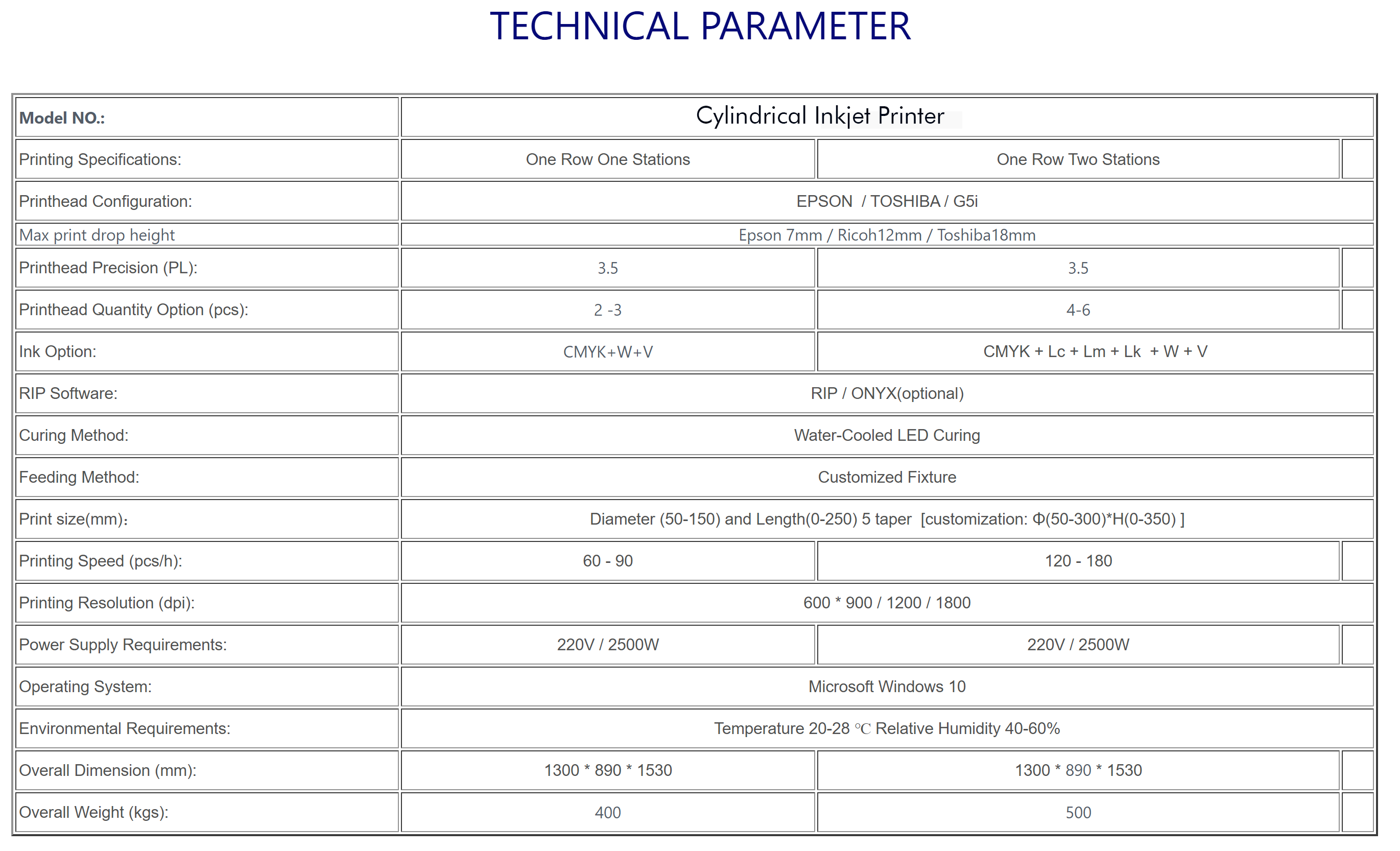

TECHNICAL PARAMETER
AUTOMATIC LOADING AND UNLOADING DEVICE

Streamlined.   Efficient.   Easy…Based on the integration of robot automation functions,

CLAMP CAN BE TILTED

Easily and quickly adjust the taper angle of the fixture according to the product specifications.

UV TRANSPARENT CURING

Transparent products such as plastic bottles and glassware can be printed without the need to fill the container with substances that block ultraviolet radiation. This UV transparent curing technology reduces wear on the print head, improves the production process, and ensures that your product remains uncontaminated inside.
TAPERED OBJECT PRINT

The cylindrical inkjet printer prints directly on conical objects. Adjust the fixture tilt according to the shape of the object until it is parallel to the spray truck, and establish an object contour model to import into the printing system.
